SATRISE AUTO CLAVE & STEAM GENERATOR

Commercial 3.2m³ Double-Door Vacuum Autoclave + Gas Steam Generator + 8 Trolleys — Complete Sterilization System (Never installed, U.S. voltage)

What's Included

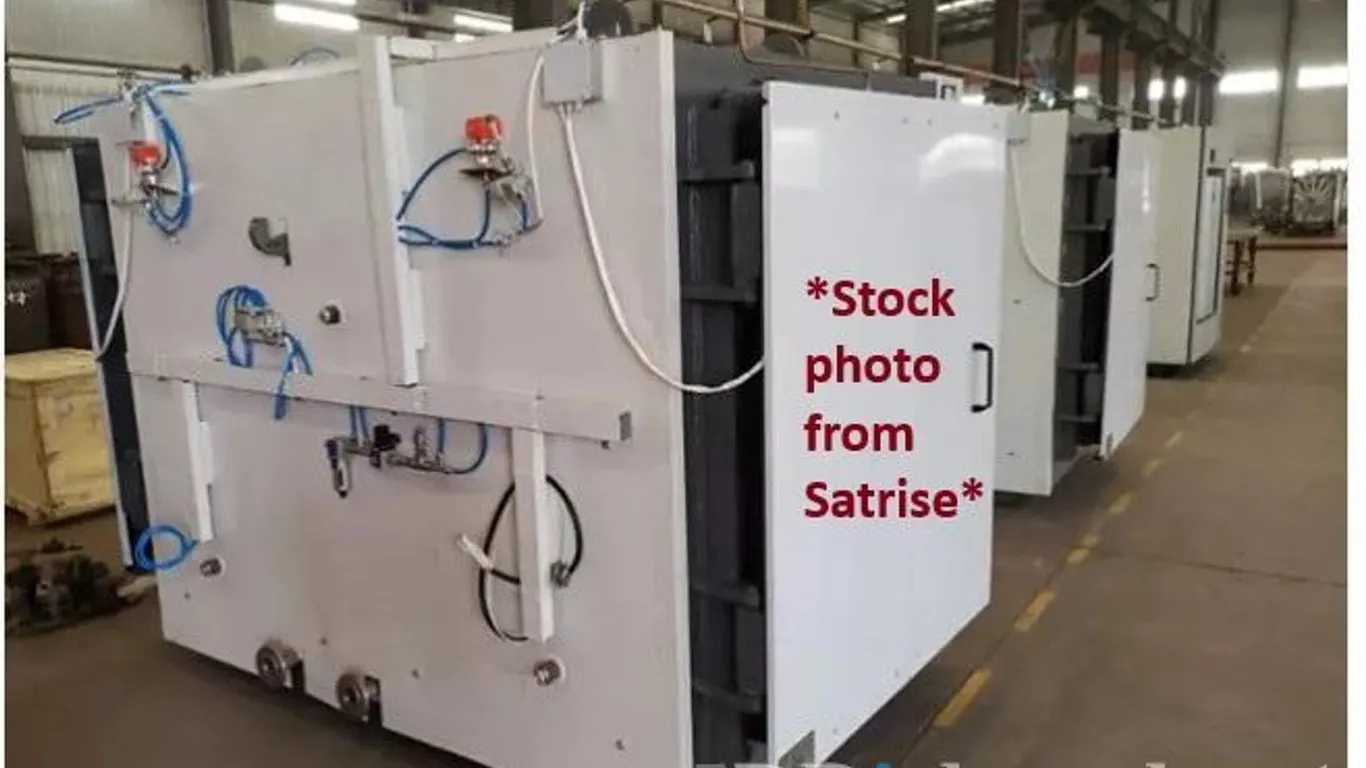

1. Satrise High-Pressure Steam Autoclave Sterilizer

     ● Inner chamber dimensions: 220cm × 105cm × 138cm (L×W×H)

     ● Capacity: 3.2 cubic meters (~113 cu ft)

     ● Weight: approx. 4,000 kg (~8,800 lbs)

     ● Operating pressure: 0.4–0.6 MPa

     ● Working temperature: 127–134°C (260–273°F)

     ● Double-door pass-through design

     ● Vacuum function with vacuum pump (pre-vac air removal for complete sterilization)

     ● Already modified for US power: 480V, 60Hz, 3-phase / 110V, 60Hz, 1-phase

     ● CE Certification included

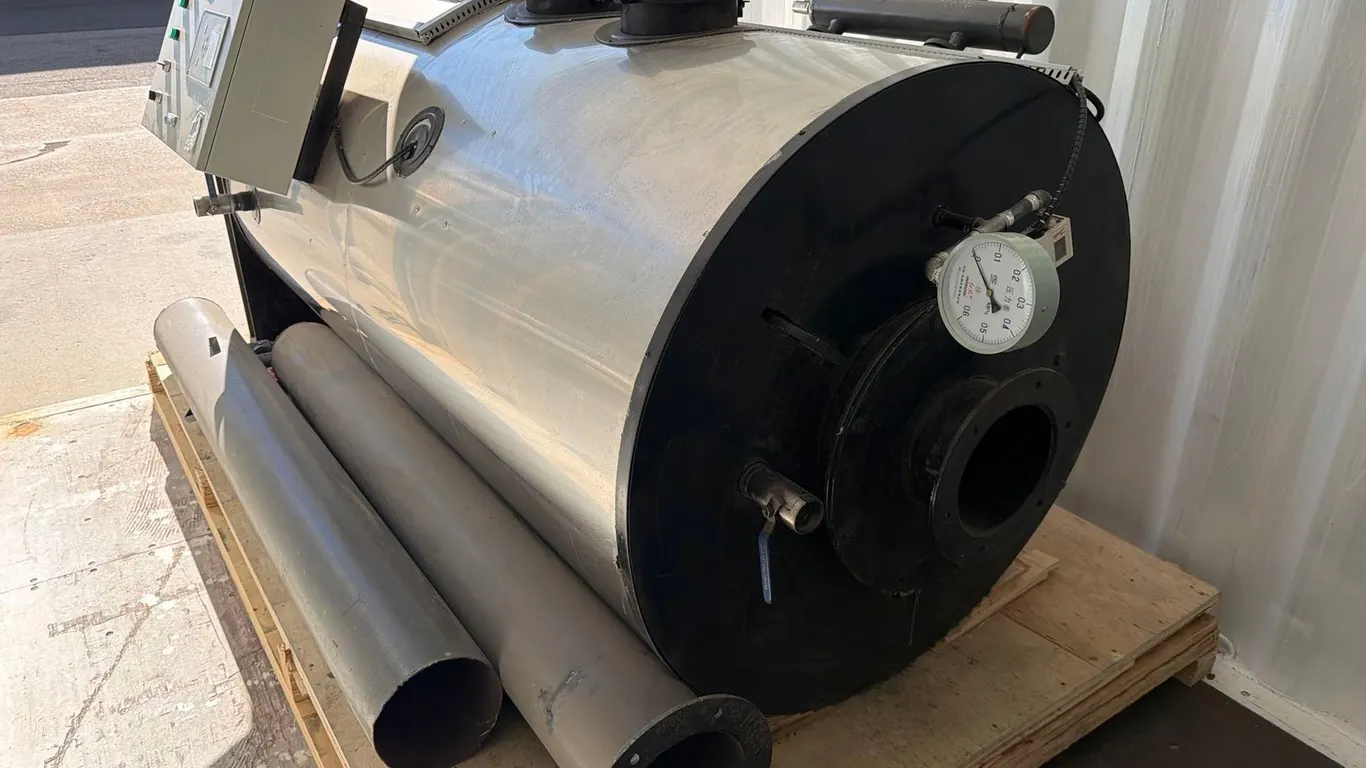

2. Natural Gas Steam Generator (0.3 t/h)

     ● Type: Natural gas fired

     ● Rated evaporation: 0.3 tons/hour

     ● Working pressure: 0.09 MPa

     ● Steam temperature: 112°C

     ● Fuel consumption: 12–18 m³/h natural gas

     ● Designed to pair directly with the autoclave

3. Stainless Steel Sterilization Trolleys (×8)

     ● Dimensions: 1m × 0.5m, 4 layers, 50cm layer height

     ● 304 stainless steel construction

     ● Assemblable / knock-down design

     ● Sized to load directly into the autoclave chamber

4. Documentation & Support

     ● CE certification documents

     ● Installation manuals and instructions

     ● Original proforma invoice

     ● Direct line to Satrise factory for remote installation support and technical guidance



Condition

     ● Never installed, never operated

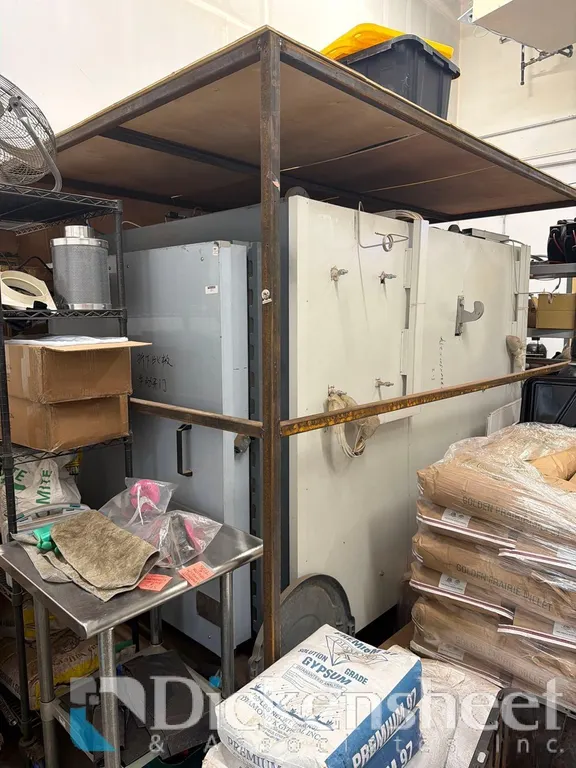

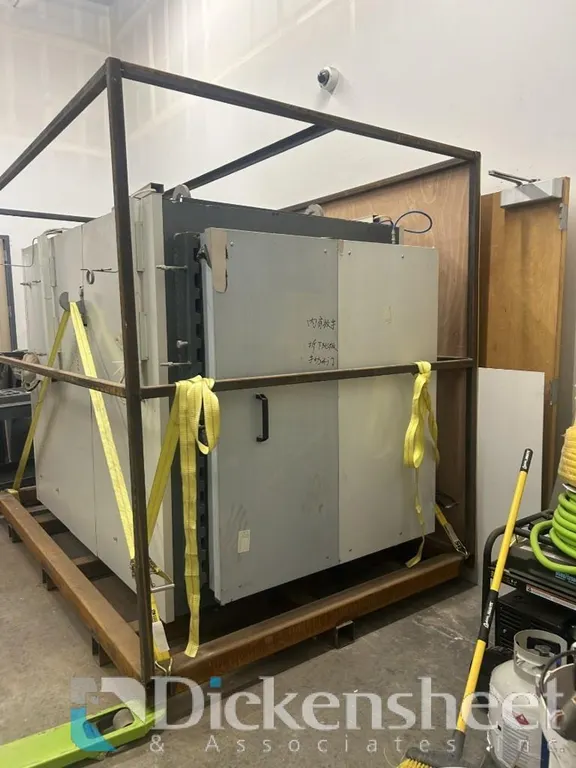

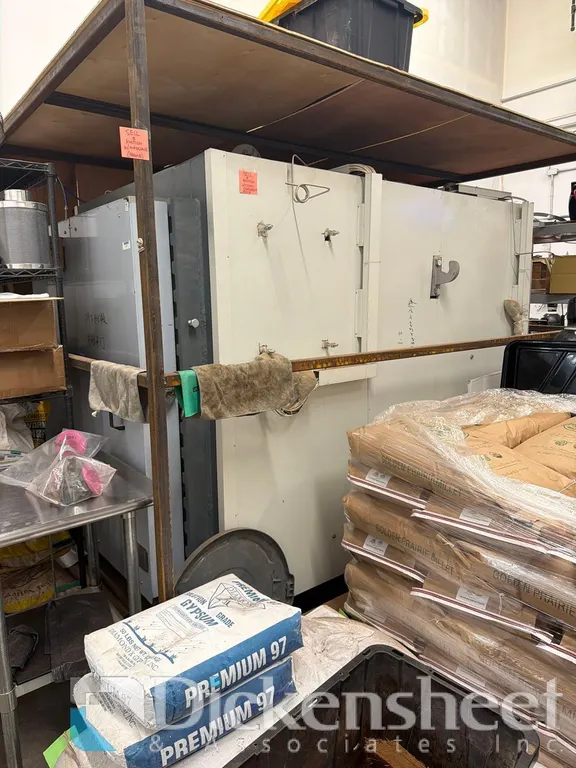

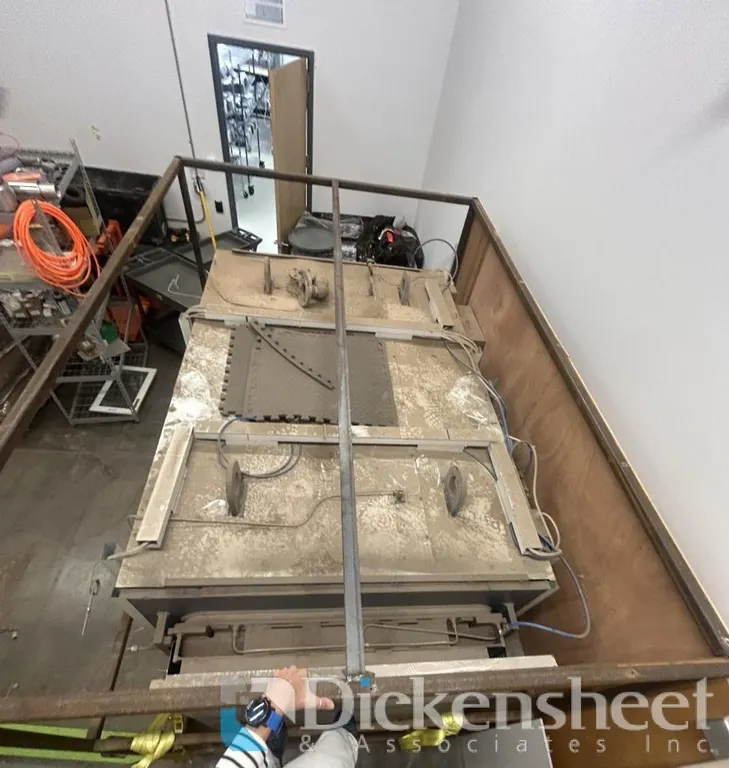

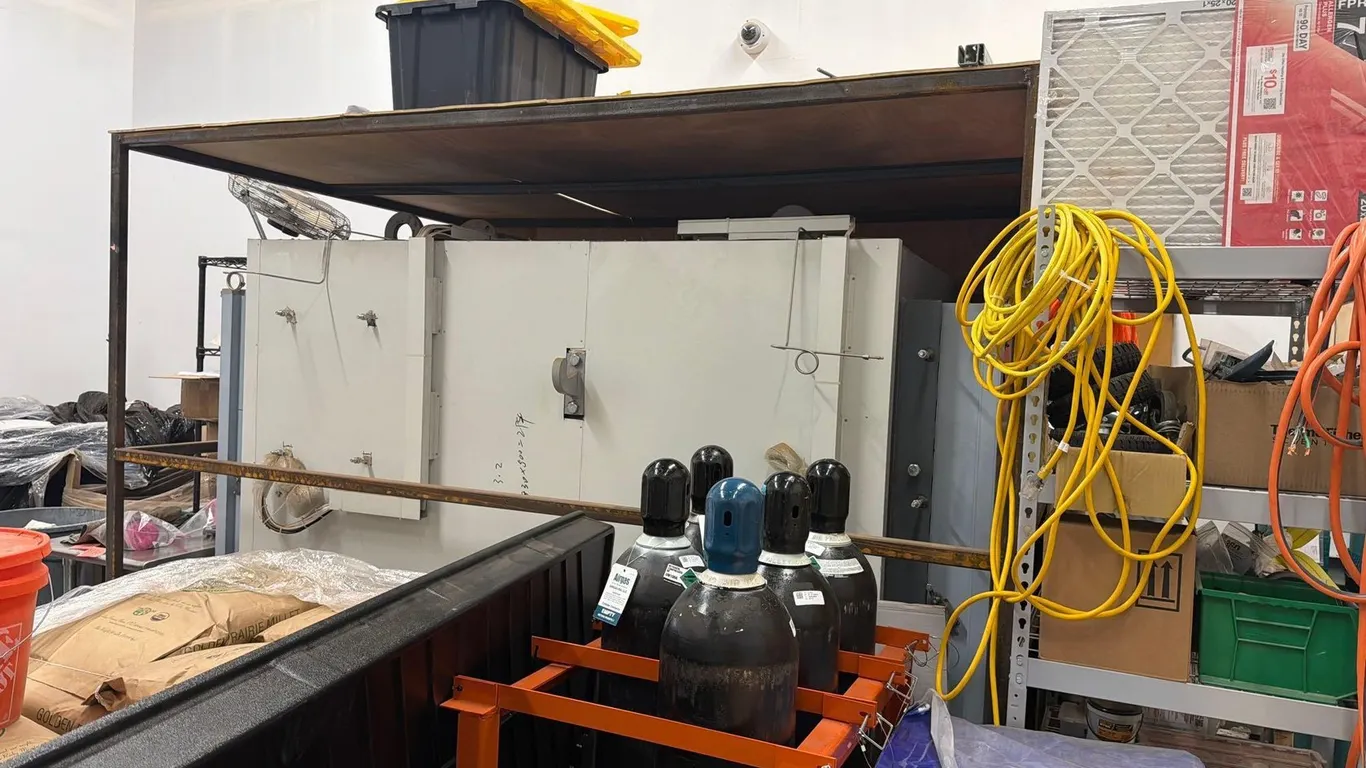

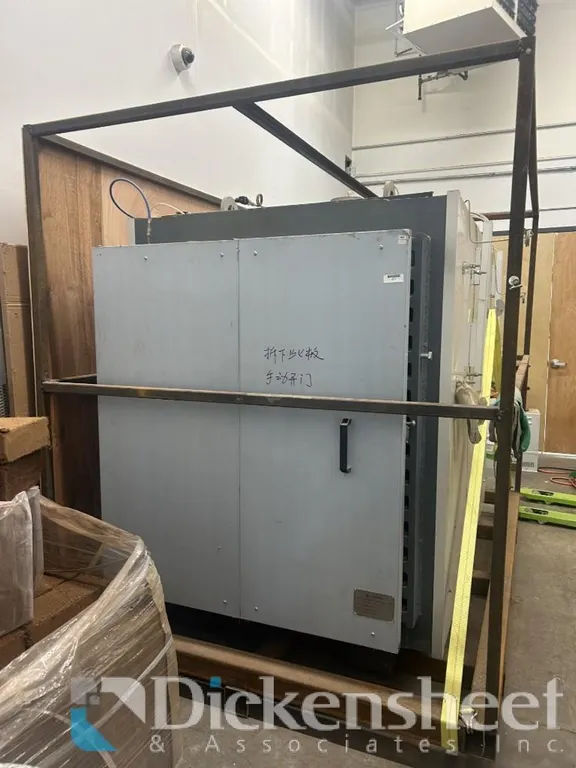

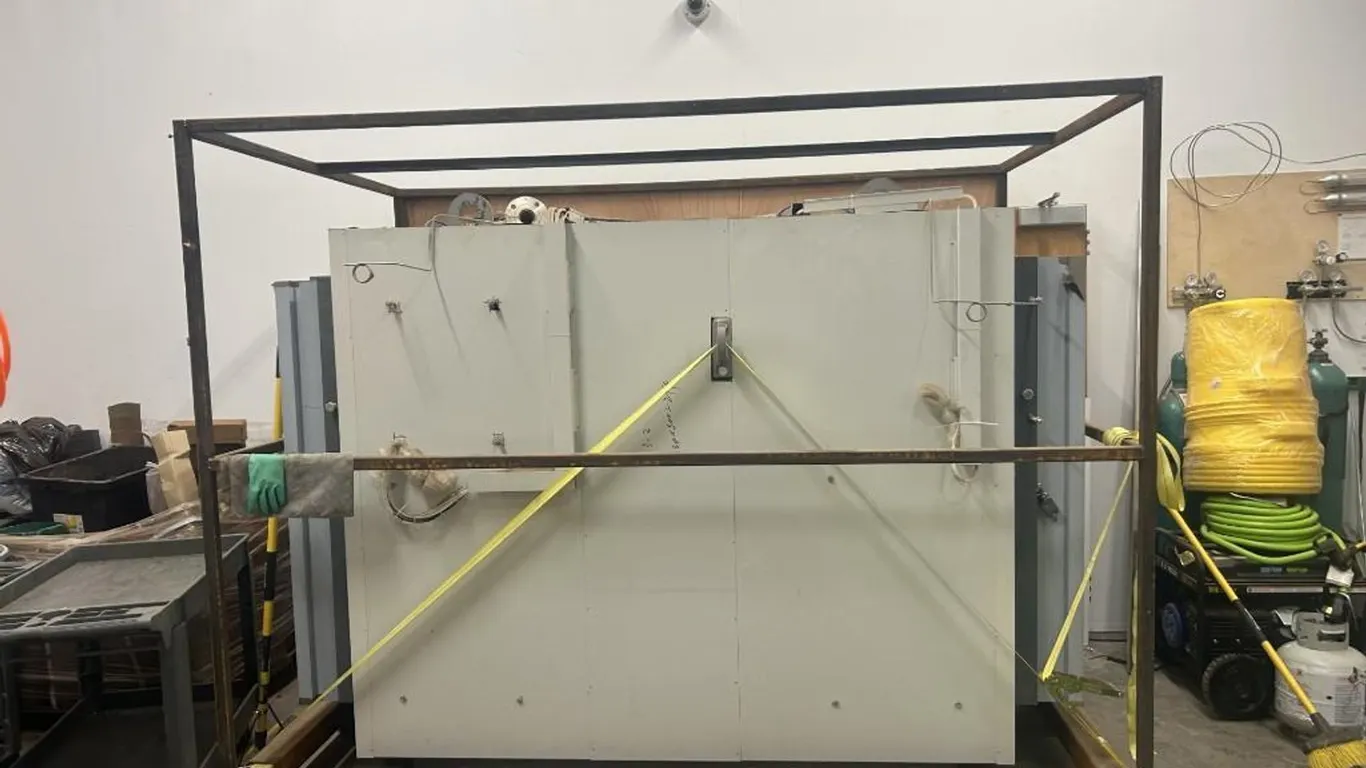

     ● Uncrated from shipping but still in steel frame transport housing

     ● Stored indoors in a climate-controlled facility since 2021

     ● No cosmetic damage, rust, or wear

     ● Essentially new-old-stock condition



Ideal Applications

     ● Commercial mushroom cultivation (substrate & grain sterilization)

     ● Pharmaceutical / botanical manufacturing

     ● Food processing & canning

     ● Laboratory / research sterilization
