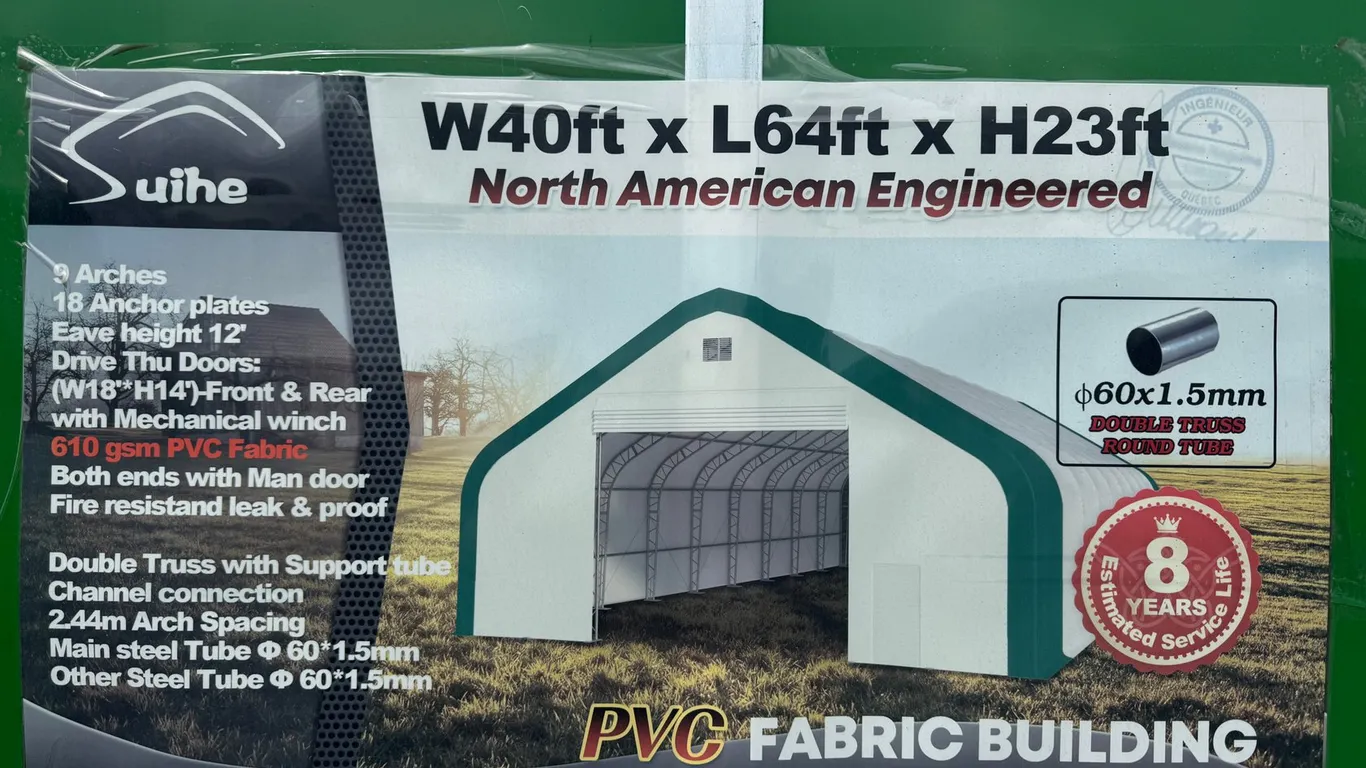

NEW 40X63X23 DOUBLE TRUSS WITH HEAVY DUTY PVC STORAGE SHELTER FOR BOAT, TRACTOR, HAYS, LIVESTOCKS

This Item Has a Reserve.

The seller has the right to lower the reserve at any time. If you are the high bidder be prepared to own the piece. All Bids are final.

 Key Features:
No Building Permits Required (Check local regulations)

Easy to Set Up & Install

Portable – Move it to new locations as needed

Two Large Mechanical Roll-Up Doors – Easy entry/exit

UV-Blocking Fabric Cover – Allows natural light while protecting contents

Heavy-Duty Galvanized Steel Frame – Resists harsh weather

Multi-Purpose Use – Ideal for equipment storage, workshops, or shelter

 Specifications:
Dimensions (WxLxH): 40' x 64' x 23'

Side-Wall Height: 12 ft

Door Size (Front & Rear): 18' x 14' (Mechanical Roll-Up)

Man Door Size: 2.6' x 6.6'

 Structure & Frame:
Frame Type: Double Truss

Steel Material: Hot Dip Galvanized

Truss Tubing: 16 Gauge

Arch Tubes: Φ60 x 1.5 mm

Purlin Tubes: Φ60 x 1.5 mm

Arch Spacing: 8 ft (9 Arches Total)

Anchor Plates: 18

Tension System: Pipe & Ratchet Tie-Down

 Fabric & Environmental Tolerance:
Tarp Material: 22oz PVC

Color Options: White w/ Green

Temperature Resistance: -22°F to +158°F

Tarp Lifespan: 7–10 Years

Frame Lifespan: 15+ Years

Snow Load: 48 lbs/ft²

Wind Load: 60 mph

Packaging Details:
Total Weight: 7,533 lbs

Box A: 124" x 44" x 46"

Box B: 124" x 44" x 46"

Box C: 98" x 44" x 35"

Note: A forklift or equivalent is required for unloading.

 Installation:
DIY Installation Time: Approx. 3 Days (Team of 4)

All Hardware & Assembly Instructions Included

Assembly Required
