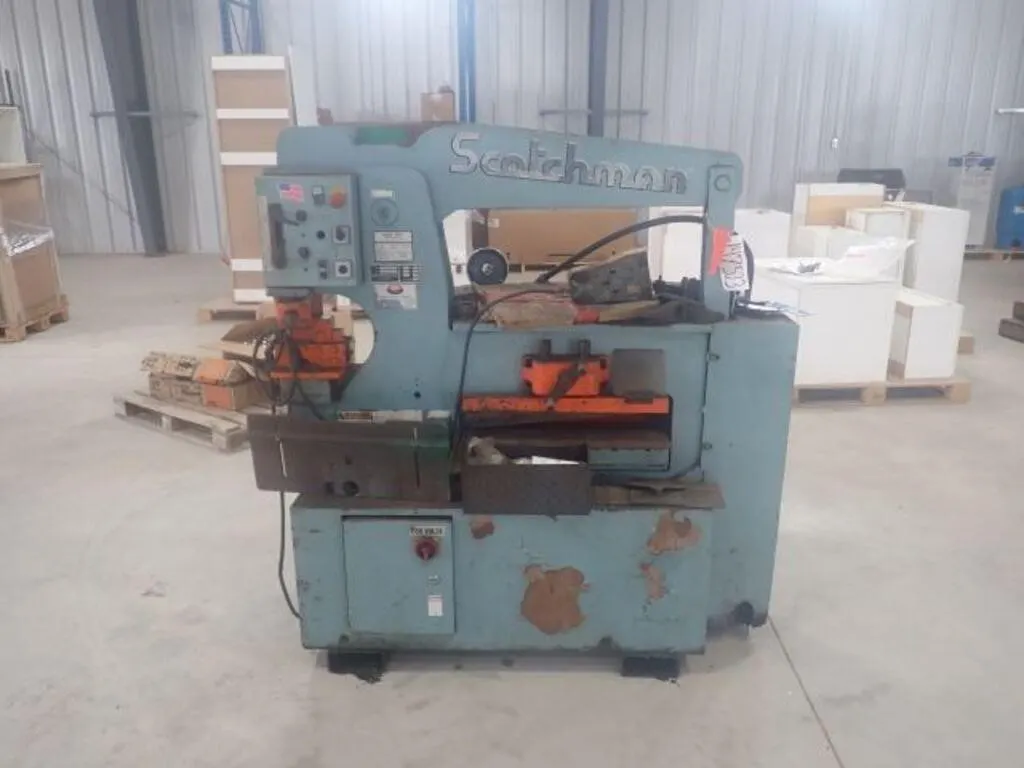

Scotchman Industries 6509-24M 65 Ton Punch Press

Scotchman Industries 6509-24M 65 Ton Punch Press SERIAL#: 3629FF0506 ONSITE: YES LOCATED: ALLSTAR AUCTIONS MAIN YARD, 44 LINE 9 SOUTH, ORO-MEDONTE, ON DETAILS: The Scotchman 5075 is a widely used and respected hydraulic ironworker, suitable for various metalworking tasks in industries like construction, manufacturing, and metal fabrication. Key features and specifications: 50 Ton Punching Capacity: Capable of punching holes up to 1-1/4" in 1/2" thickness and 13/16" in 3/4" thickness. Bar Shear: Shears up to 24 inches wide and 3/16 inch thick, or 6 inches wide and 3/4 inch thick, without blade adjustments. Optional 12 or 24 inch blade lengths are available. 7.5 inch open end throat: Provides generous space for manipulating materials. Stroke Control: Adjusts cutting and punching actions for optimal tool clearance and stroke rate. Automatic Hydraulic Relief Valve: Protects the machine from overloading. Tool Table: Machined work area for mounting quick change component tooling. Quick Change Tooling: Optional tooling is available for shearing rod, angle, channel, and brakes. Motor: 5 HP, 230 V, 3 Phase, Strokes per Minute: 30 (light material), Dimensions: Approximately 27.5”W x 54”L x 65”H, Weight: Approximately 2,200 Lb, Hydraulic Operating Pressure: 2,500 PSI
