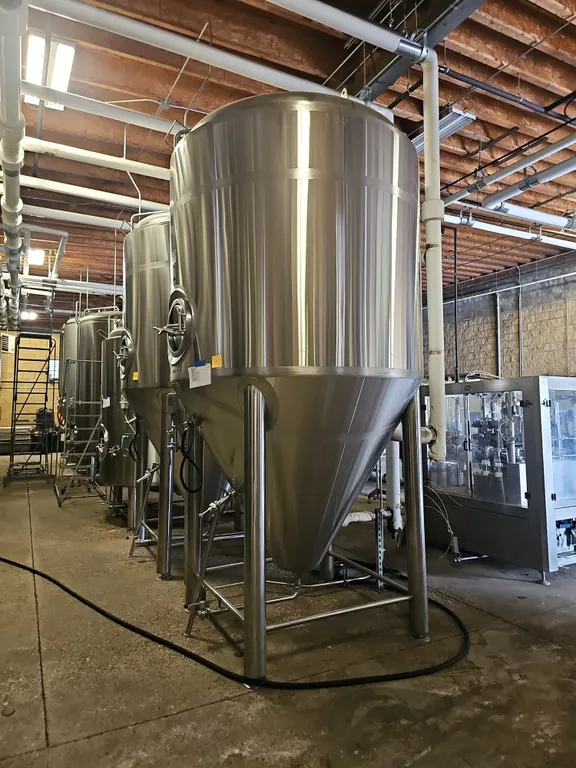

40 BBL Unitank

Description

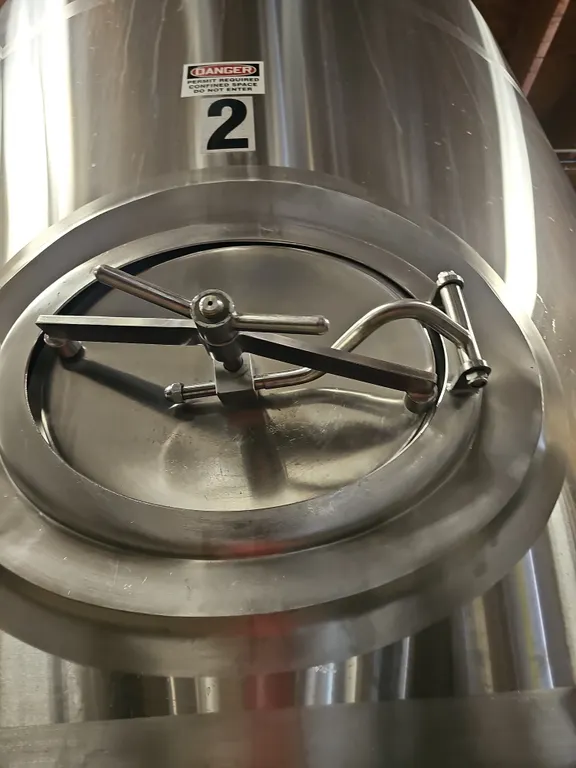

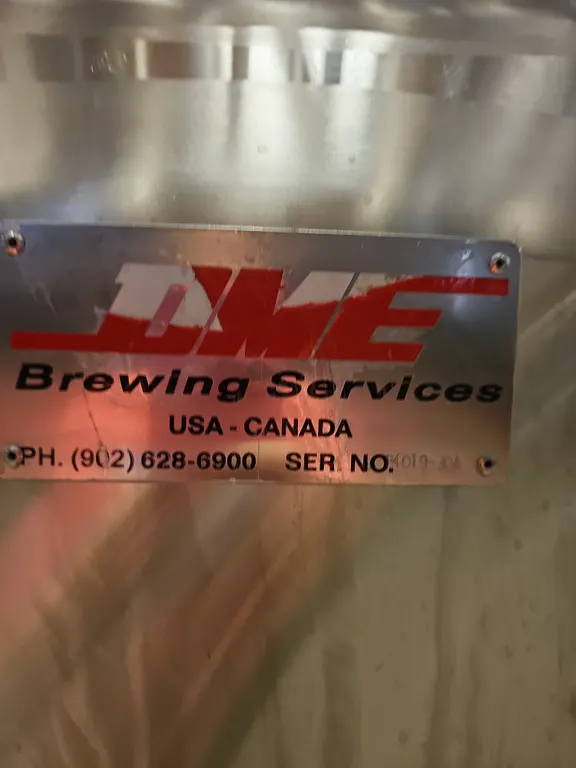

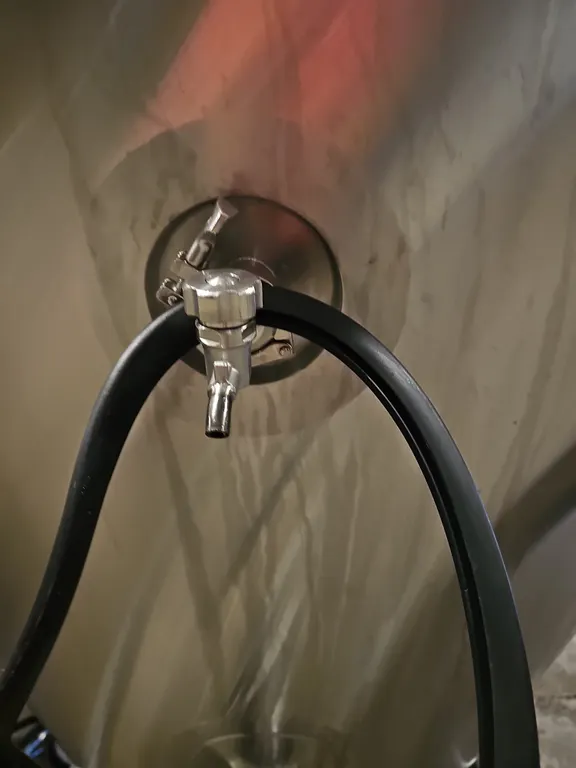

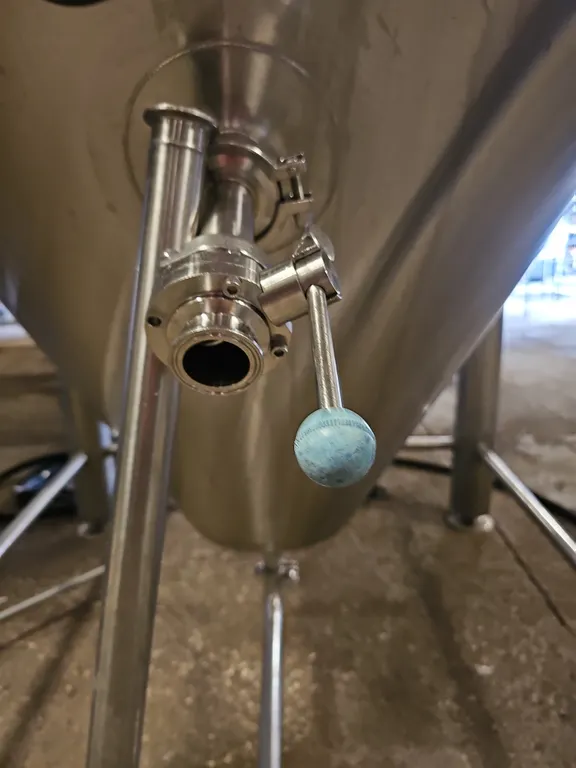

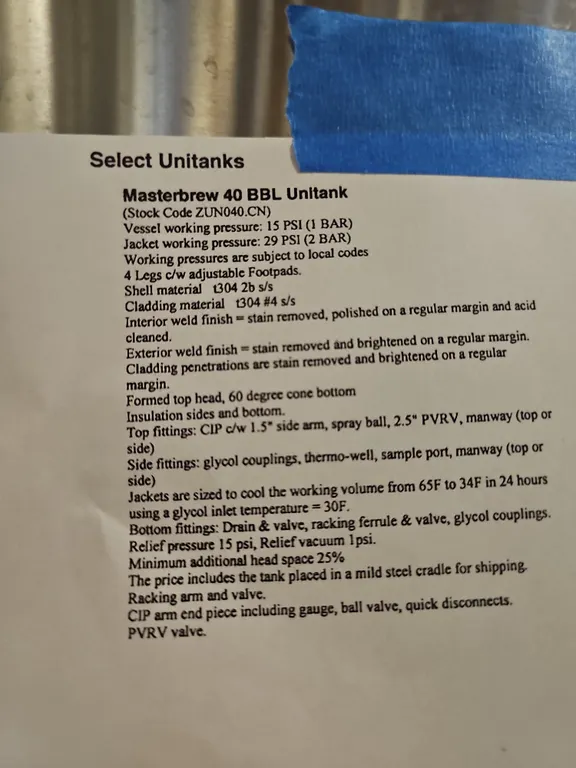

Buyer will pay for rigging services on top of the invoice; the cost will be $1,200. Masterbrew 40 BBL stainless steel unitank built by DME Brewing Services. T304 stainless shell with T304 #4 stainless cladding, insulated sides and bottom, glycol jacketed. Formed top head with 60 degree cone bottom, four legs with adjustable footpads. Vessel working pressure 15 PSI, jacket working pressure 29 PSI. Fittings include CIP arm with spray ball and 1.5 inch side arm, 2.5 inch PVRV, side manway, glycol couplings, thermowell, sample port, racking arm and valve, and bottom drain and valve. Manufacturer stock code ZUN040.CN. Per the manufacturer spec sheet, the jacket is sized to cool the working volume from 65F to 34F in 24 hours with a 30F glycol inlet.
