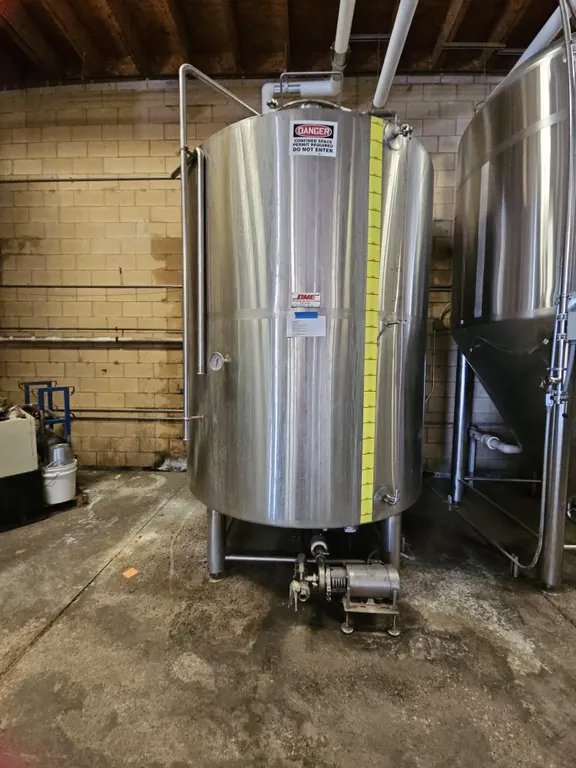

40 BBL Cold Liquor Tank & Pump

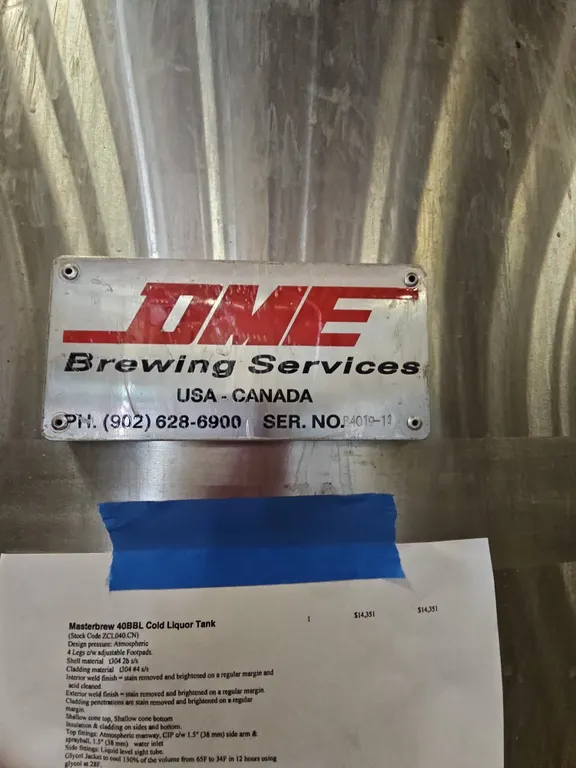

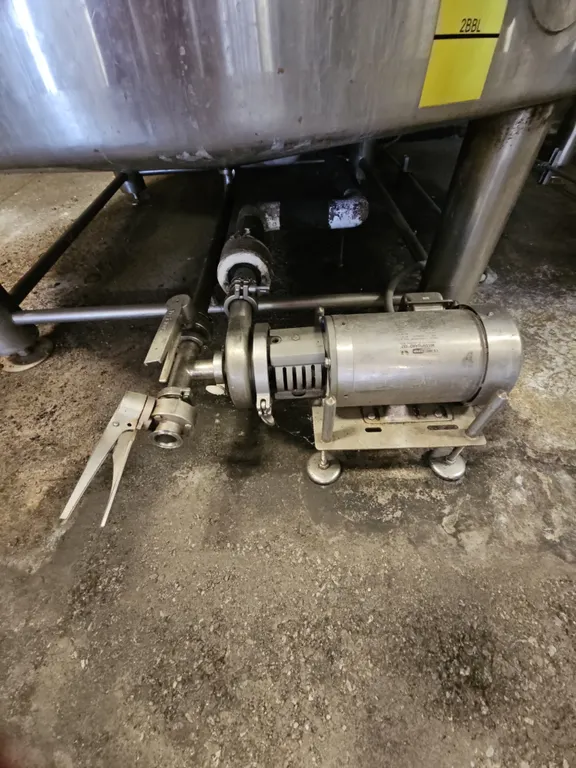

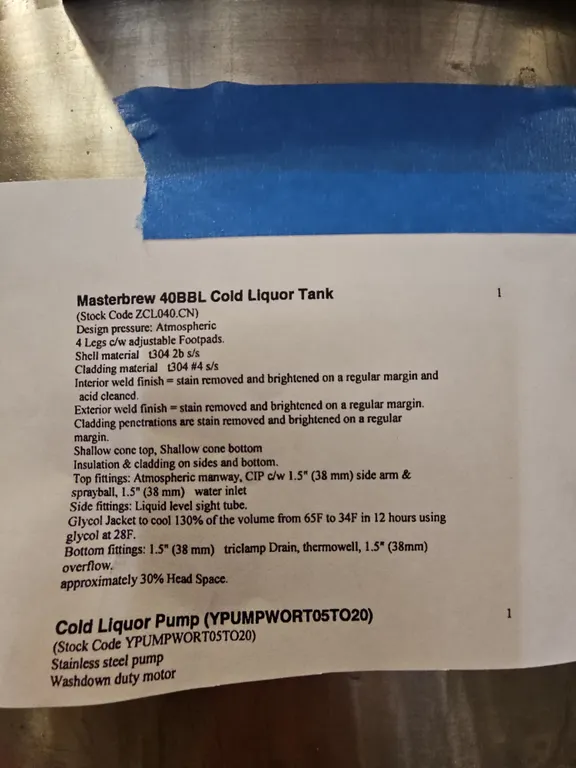

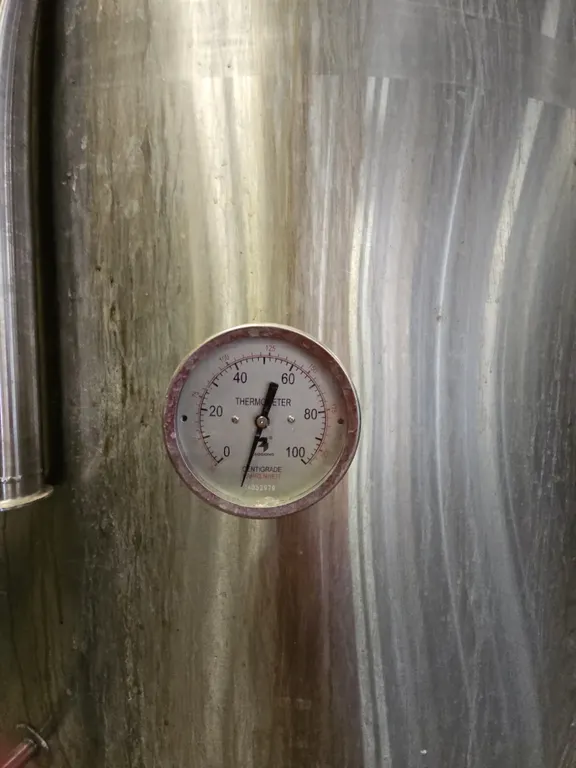

Buyer will pay for rigging services on top of the invoice; the cost will be $1,200. Masterbrew 40 BBL cold liquor tank with pump, built by DME Brewing Services. Atmospheric design pressure. T304 stainless shell with T304 #4 stainless cladding, insulation and cladding on sides and bottom, shallow cone top and shallow cone bottom, four legs with adjustable footpads. Top fittings include atmospheric manway, CIP arm with spray ball and 1.5 inch side arm, and 1.5 inch water inlet. Side fitting is a liquid level sight tube. Bottom fittings include 1.5 inch tri-clamp drain, thermowell, and 1.5 inch overflow. Approximately 30 percent head space. Sold with a stainless steel cold liquor pump with washdown duty motor. Manufacturer stock codes ZCL040.CN (tank) and YPUMPWORT05TO20 (pump). Per the manufacturer spec sheet, the glycol jacket is sized to cool 130 percent of the volume from 65F to 34F in 12 hours with glycol at 28F.
